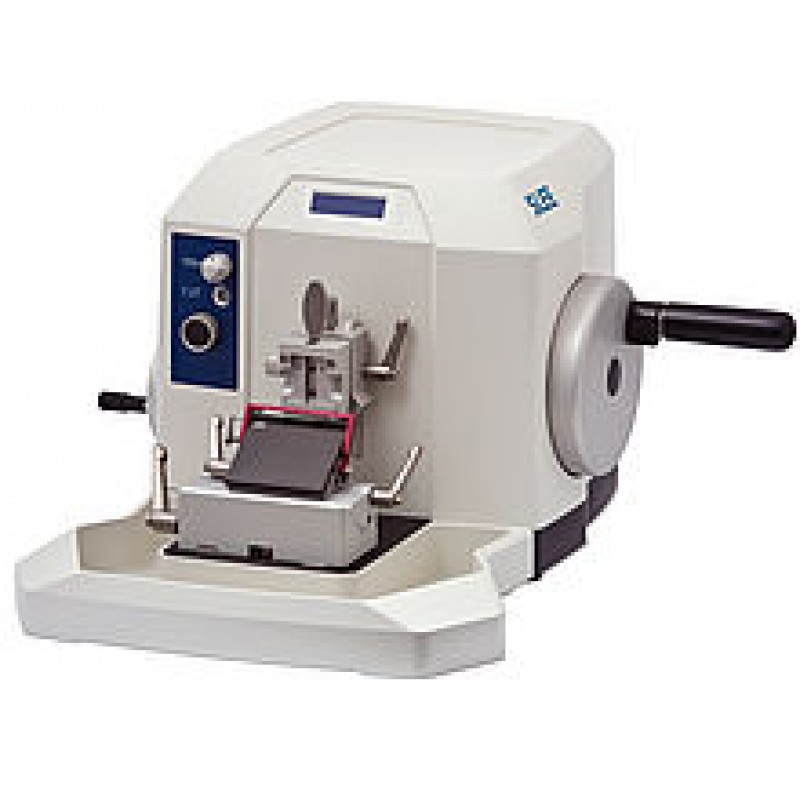

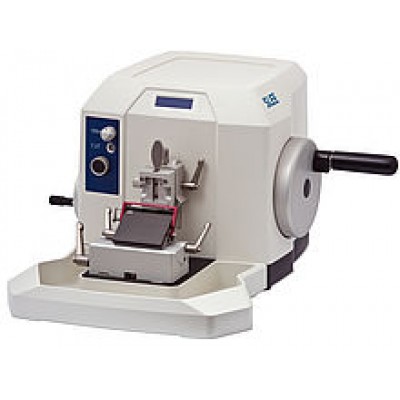

The manual precision microtome
Standard unit for Paraffin sections and research-, plastic- and industrial applications.
- High precision specimen feed
- Smoothly running handwheel
- Handwheel lock in each position
- Trimming function in 4 steps
- Specimen retraction upon backstroke
- Accoustic signal for end position of specimen movement
- Vibration free microtome base plate
- Ergonomically located coarse feed wheel
- Spacious, integrated section waste tray
- Wide range of accessories
Optional accessories for tailor-made configurations:
- 3-component disposable blade holder (low/high Profile blades)
- 3-component disposable blade holder (TC 65, hard metal blades)
- Standard knife holder
- Object orientation
- QuickLoad cassette clamp, orientable
- Universal cassette clamp, orientable
- Universal cassette clamp, fixed
- Standard object clamp, orientable
- Standard object clamp, fixed
- Super-Mega cassette clamp, fixed
- Foil clamp
- Illuminated magnifier
|
Specifications CUT 4062 |
|
|
Section thickness Setting range |
0.5 µm to 60 µm |
|
Section thickness selection |
0.5 to 2 µm in 0.5 µm-steps2 to 10 µm in 1.0 µm-steps10 to 60 µm in 2.0 µm-steps |
|
Trimming thickness setting range |
10 µm, 20 µm, 30 µm, 40 µm |
|
Horizontal specimen feed |
28 mm |
|
Vertical stroke |
60 mm |
|
Coarse feed |
manual |
|
Specimen retraction |
automatic |
|
Specimen orientation, horizontal |
8° |
|
Specimen orientation, vertical |
8° |
|
Specimen orientation, z-axis |
360° |
|
Dimensions [WxDxH] |
480 x 610 x 350 mmincl. handwheel and waste tray |
|
Weight [w/o accessories] |
33 kg |
- Product: CUT 4062
- SKU:
- Availability: Pre-Order
