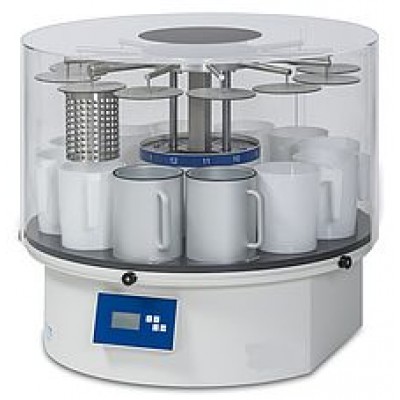

The MTP carousel tissue processor guarantees gentle and highly reliable specimen processing in conjunction with state of the art control features. The specimen throughput can be doubled to 240 cassettes per run with a second transport basket. For faster and substantially improved processing of tissue, the instrument can optionally be equipped with vacuum units for all paraffin beakers or all positions including reagent beakers. An integrated battery ensures highest process safety even in environments with frequent power failures. Hazardous fumes are efficiently eliminated by a fume extraction system thereby increasing user safety.

    Easy loading and full process control by rotating table principle
    Integrated UPS system protects your samples
    Up to 240 cassettes per run
    Intuitive control panel
    Delayed start function
    System Status Monitor
    Password protected software

Optional accessories for tailor-made configurations:

    Anodized aluminum reagent beakers
    Organizer tray
    Perspex hood
    Fume extraction system incl. charcoal filter
    Vaccuum function for paraffin beakers
    Vacuum function for reagent and paraffin beakers
    TWIN Configuration for two sample baskets
    Remote Alarm system

Specifications MTP

Type                               Carousel

Principle                         Rotating reagent table

Reagent container          10x reagent beakers (polyacetal, white, 2.000 ml) 2x electrically heated Paraffin beakers  (aluminum, 2.000 ml)

Incubation time per position up to 23 hours, 59 minutes, programmable

Mixing Lifting of basket, programmable

Drip off time per position, programmable

Transport basket stainless steel, 120 cassettesProcess capacity120 cassettes (Standard)240 cassettes (2x Transport basket)

Temperature range         Paraffin beaker60 - 75 °C

Programmes                    20

SafetyHood (optional)

 Active carbon filter (optional)
 Exhaust System (optional)
 System Status Monitor

Sample safetyIntegrated UPS
Remote Alarm module (optional)
Vacuum functionfor 2x paraffin beakers
 for 3x Paraffin beakers
 for 10x reagent and 2x paraffin beakers)
 for 9x reagent and 3x paraffin beakers)
Delayed start functionDelayed start up to 999 hoursDisplayLCD
 4x Control elements
Dimensions [WxDxH]870 x 870 x 700 mm

Weight [w/o accessories]80 kg

Electrical parameters100-240 V; 50-60 Hz; 250 W
